HS Oscilloscopes — Portable USB Oscilloscopes for the HScope Android App

0

Max Sampling Rate

0

Channels (HS514)

0

Max Input Range

0

Models Available

Our Products

Choose the oscilloscope that fits your needs. From hobbyist to professional
automotive diagnostics.

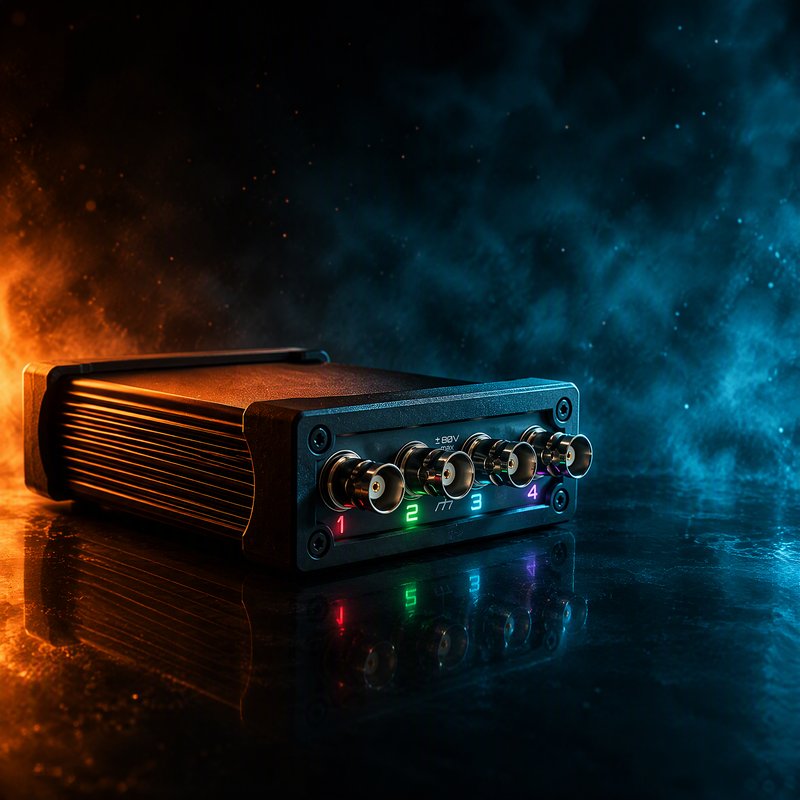

HS514 4-channel USB oscilloscope for HScope Android app

Top range · 4 channels

HS514 Oscilloscope (USB)

The latest and most capable HS model. Four channels, an insulated USB port and an insulated PWM output make it the safe choice for demanding measurements.

4 channels
ADC resolution: 8 / 12 / 16 bit
Max rate: 13 MSa/s (8 bit), 6.5 MSa/s (12 bit)
Max input range: 80 Vp
Protection: 230 Vrms for 30 s
Insulated USB port & insulated PWM output
AC/DC coupling · hardware trigger
120 KB memory buffer · 250 mA

Includes yellow hard case, 1 m USB-OTG cable with EMI protection.

JOIN WAITLIST

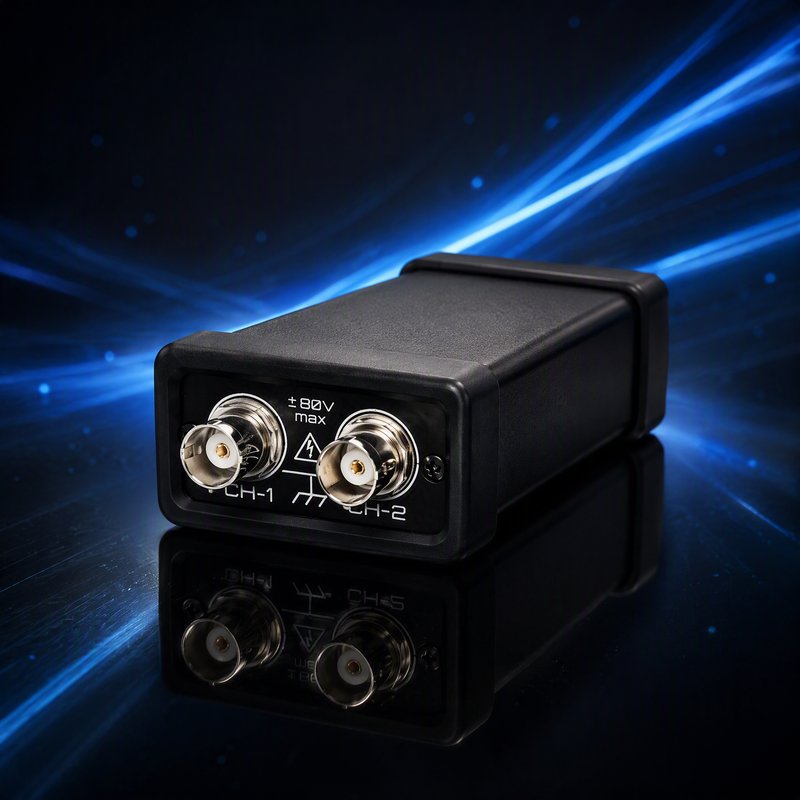

HS512 MAX 2-channel USB oscilloscope for HScope Android app

Mid range · Automotive favorite

HS512 MAX Oscilloscope (USB)

Improved version of the popular HS402 with a new core technology. Two channels and an 80 Vp input range — with automotive kits up to 1000 Vp readings via the AT-SPARK attenuator.

2 channels
ADC resolution: 8 / 12 / 16 bit
Max rate: 13 MSa/s (8 bit), 6.5 MSa/s (12 bit)
Max input range: 80 Vp
Protection: 230 Vrms for 30 s
AC/DC coupling · hardware trigger
64 KB memory buffer · 130 mA
Kits from Basic to Advanced Automotive (current clamps included)

Includes 50 cm USB-OTG cable with EMI protection and black case.

BUY NOW

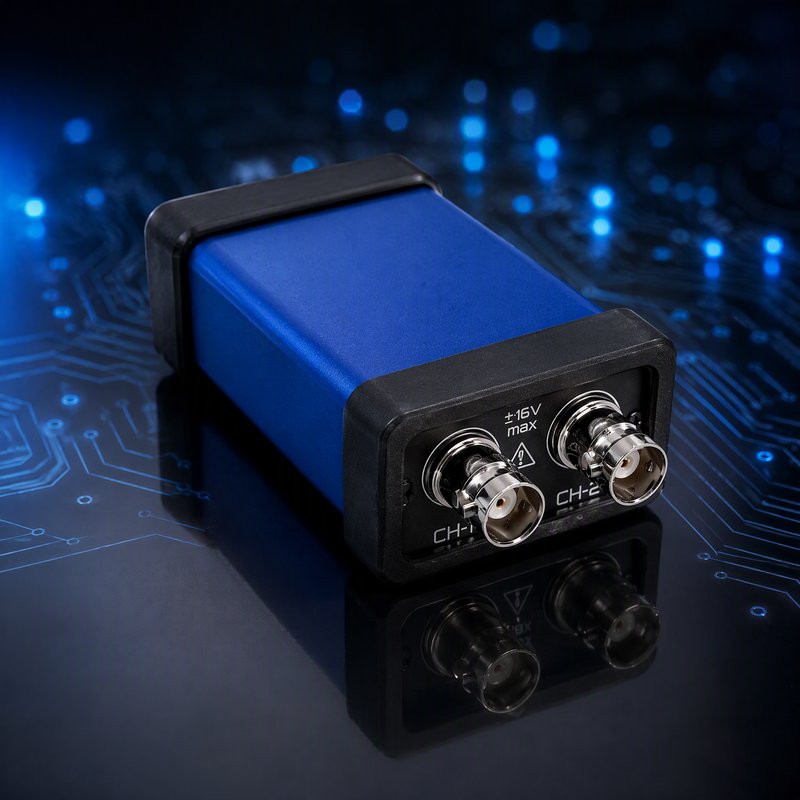

HS502 2-channel USB oscilloscope for HScope Android app

Entry range · Best value

HS502 Oscilloscope (USB)

The most affordable way into the HScope ecosystem. Same new-generation ARM Cortex-M4 core, two channels, and a wide choice of probe and automotive kits.

2 channels
ADC resolution: 8 / 12 / 16 bit
Max rate: 13 MSa/s (8 bit), 6.5 MSa/s (12 bit)
Max input range: 16 Vp
Protection: 50 Vp
AC/DC coupling · hardware trigger
64 KB memory buffer · 130 mA
Kits from Basic to Advanced Automotive (attenuators up to 320 Vp)

Includes 50 cm USB-OTG cable with EMI protection and blue case.

BUY NOW

Technical Specifications

Specification	HS514	HS512 MAX	HS502
Channels	4	2	2
ADC resolution	8 / 12 / 16 bit	8 / 12 / 16 bit	8 / 12 / 16 bit
Max sampling rate	13 MSa/s (8 bit) · 6.5 MSa/s (12 bit)	13 MSa/s (8 bit) · 6.5 MSa/s (12 bit)	13 MSa/s (8 bit) · 6.5 MSa/s (12 bit)
Input range	100mVp - 80 Vp	100mVp - 80 Vp	500mVp - 16 Vp
Input protection	230 Vrms / 30 s	230 Vrms / 30 s	50 Vp
Coupling	✓ AC / DC	✓ AC / DC	✓ AC / DC
Trigger	✓ Hardware	✓ Hardware	✓ Hardware
Memory buffer	120 KB	60 KB	60 KB
Insulated USB port	✓	✗	✗
Insulated PWM output	✓ 0-5V / up to 100kHz	✗	✗
PCB Layers	4	4	2
Power consumption	250 mA	130 mA	130 mA
Case	Black hard case	Black case	Blue case
Cable length	1 m USB-OTG	50 cm USB-OTG	50 cm USB-OTG
Size	129 x 87 x 32mmH	86 x 46 x 26mmH	86 x 46 x 26mmH
Weight	215g	73g	70g
Availability	Waiting list	✓ Available	✓ Available

All models: HScope app ready to use with no additional license; Automotive functions are enabled in the app while the oscilloscope is connected. Requires Android 7+ (suggested CPU 2.1 GHz+). Performance depends on the Android device.

Powered by HScope

HS oscilloscopes work exclusively with the HScope app for Android — a full-featured oscilloscope, logic analyzer and automotive diagnostic tool running on your phone or tablet.

Basic license for HScope app included with all HS oscillscopes
Automotive functions unlocked while the oscilloscope is connected
USB-OTG connection — measure anywhere, no bench required
Low power draw, powered directly from your device

Documentation & Support

Download here the HS5x2 User Manual (PDF)
Related Videos on Youtube
Community support: join the HScope public group on Telegram
